The primary and most important function of our solid-state, ultra-fast 1.5 kV, 1.5 kA DC breaker for maritime applications is its ultra-fast interruption of faults, thereby preventing the dramatic consequences of short-circuit situations and power overload. Our ultra-fast liquid-cooled DC breakers are available in six sizes with a nominal voltage of 1.5 kV and nominal currents between 0.35 kA and 3 kA.

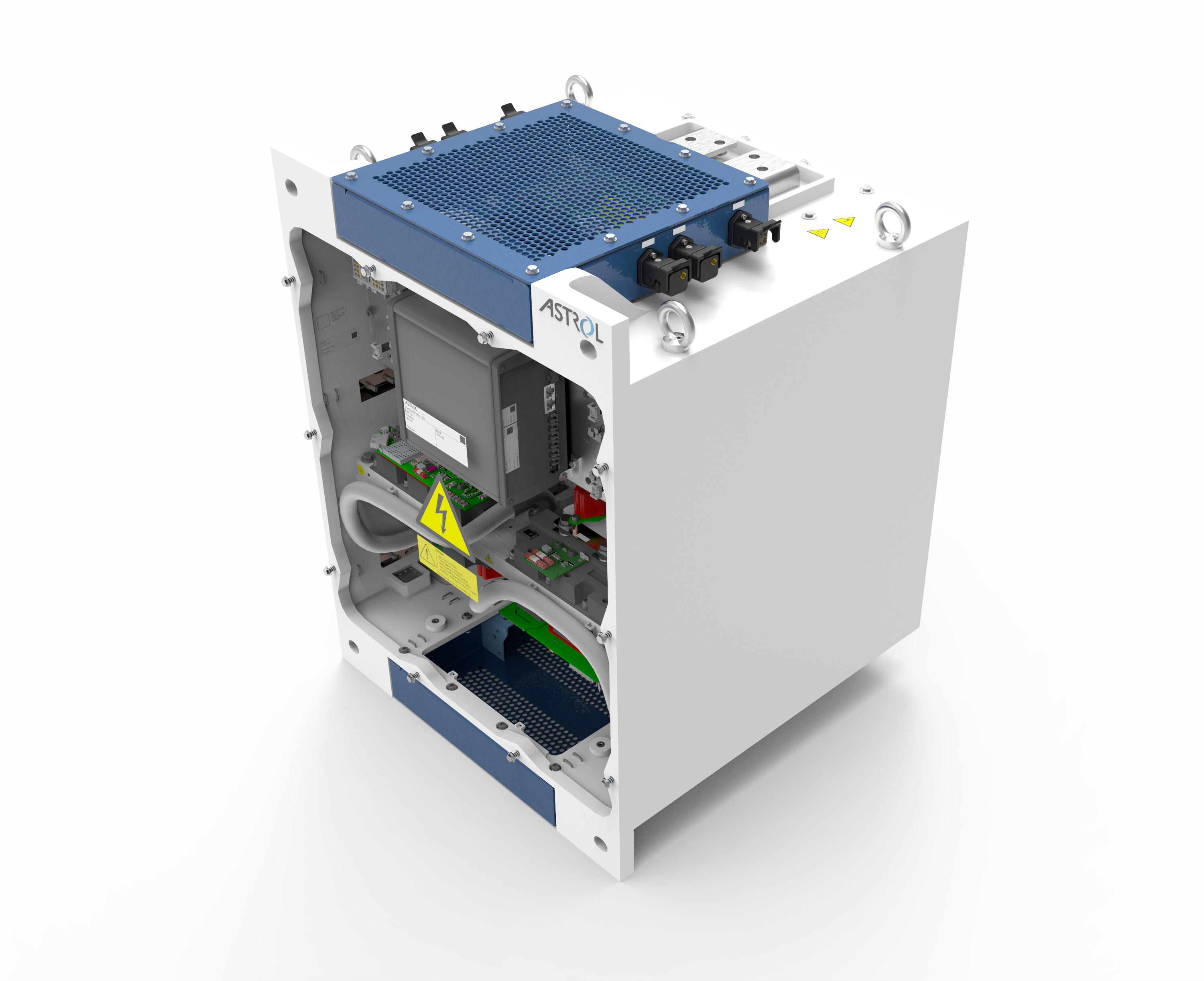

1.5 kA 1.5 kV DC breaker
Specifications
| Weight | 95 kg |
|---|---|
| Dimensions | 507 × 507 × 673 mm |
| Nominal voltage | 1.5 kV |
| Nominal current | 1.5 kA |
| di/dt capability (A/µs) | up to 1000A/us |
| Typical breaking current @1000V @10uH (kA) | 3.5 kA |
| Breaking time maximum tBreak (µs) | 10 µs |
| Breaking time typical tBreak (µs) | 8 µs |
| Clearance time typical tClearance (µs) | 9.4 µs |
| Marine type approval | DNV and CCS |
| Cooling type | Liquid cooling, air cooling available upon request |
| Suitable for DP3 | Yes |
| IP protection | IP 20, up to IP 54. According to customer requirement. |
| Brand | Astrol |
