The primary and most important function of our solid-state, ultra-fast 1.5 kV, 0.35 kA DC breaker for maritime applications is its ultra-fast interruption of faults, thereby preventing the dramatic consequences of short-circuit situations and power overload. Our ultra-fast liquid-cooled DC breakers are available in six sizes with a nominal voltage of 1.5 kV and nominal currents between 0.35 kA and 3 kA.

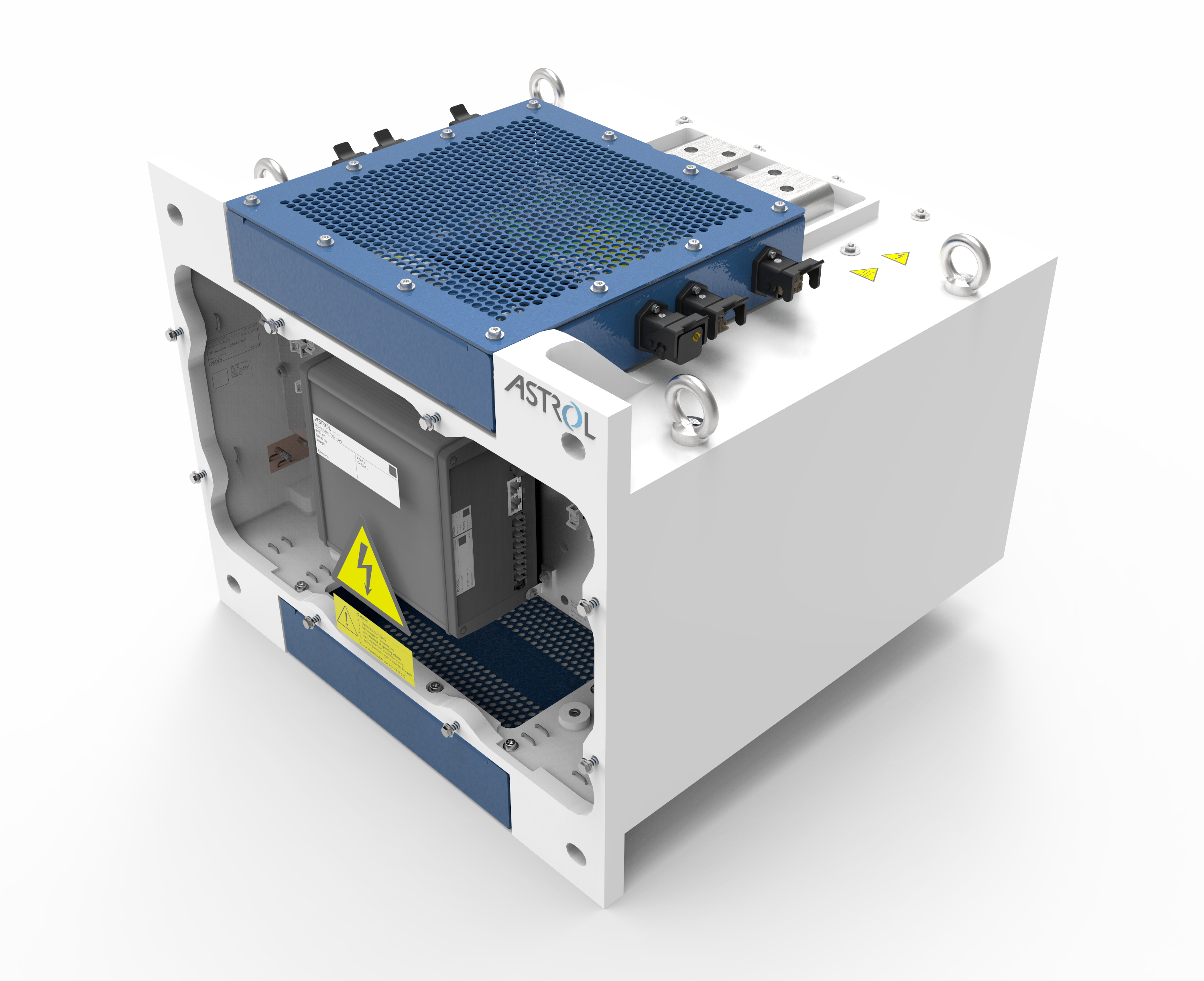

0.35 kA 1.5 kV DC breaker
Specifications
| Weight | 52 kg |
|---|---|
| Dimensions | 507 × 507 × 430 mm |
| Nominal voltage | 1.5 kV |
| Nominal current | 0.35 kA |
| di/dt capability | Up to 167 A/us |
| Typical breaking current @1000V @10uH | 1.7 kA |
| Breaking time typical, tBreak | 8 µs |
| Breaking time maximum, tBreak | 10 µs |
| Clearance time typical, tClearance | 7 µs |
| Marine type approval | DNV and CCS |
| Cooling type | Liquid cooling, air cooling available upon request |
| Suitable for DP3 | Yes |
| IP protection | IP 20, up to IP 54. according to customer requirement |
