Optical fiber interface with electrical input

LWL TX HFBR

This optical fiber interface with electrical input is used in applications where different input voltages are used to switch on the light. With our solution, one can vary the input voltage from 4.5V to 28V without any change in the output power of the light. It is mainly used as an electrical to optical converter which can easily be used in DIN rail applications.

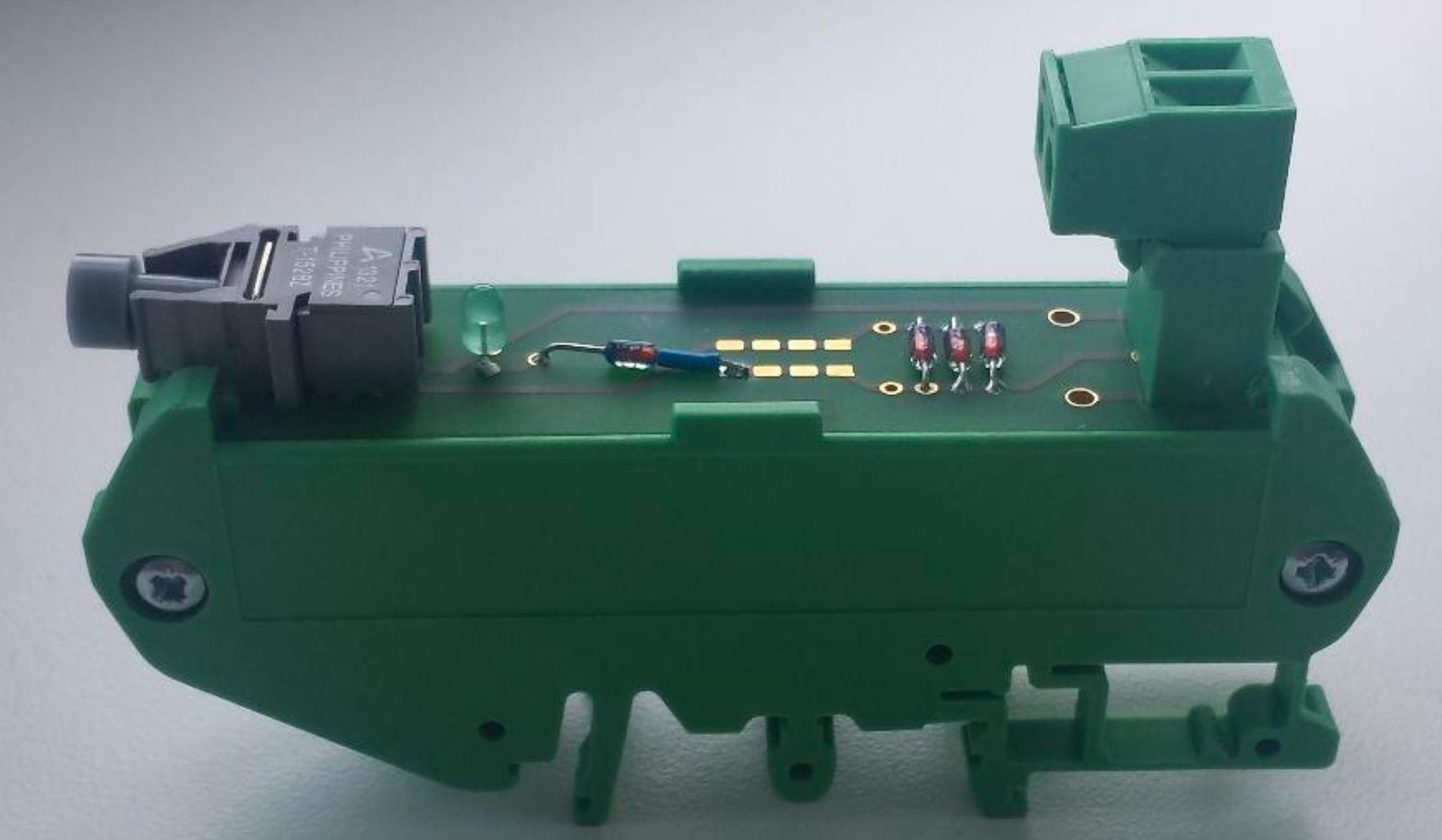

Optical fiber interface with electrical input LWL_TX_HFBR diagram

Optical output

The optical output can be either a plastic optical fiber (POF) or glass (ST). On this device HFBR-1(4/5)xx types are used depending on the cable types. For more detailed information consult the datasheet from AVAGO.

Features

  • Glass or POF interface (variant)
  • BNC coaxial input connector on request
  • Status LED
  • compact in size
  • DIN rail mounting
  • Easy handling
  • Low cost

Optical fiber interface with electrical input LWL_TX_HFBR

Mechanical drawing

The LWL-TX-UM72 is built around a DIN rail mounting housing from the company Phoenix contact. For more information see also the Phoenix Contact home page.

Part number

AA-10367-002

LWL TX HFBR1528 UM72: Plastic optical transmitter (POF) with electrical output

AA-10367-012

LWL TX HFBR1414 UM72: Glass optical transmitter (ST) with electrical output

Specifications

InterfaceGlass or POF
Input voltage4.5 V - 28 V
Current consumption0.04 A
Ambient temperature-25 °C to 60 °C
